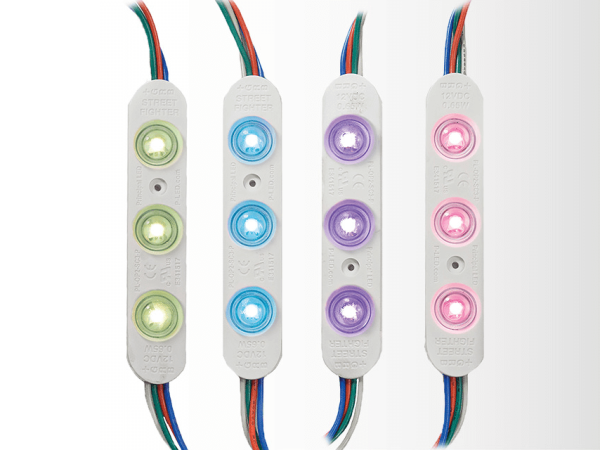

Street Fighter™ RGB
Now available with the flexibility of color-changing RGB.
Powerful Street Fighter™ has the flexibility of color-changing RGB LED sign lighting with wide module spacing, reducing module count.
- Cycle through a variety of colors or keep a unique color stationary with RGB
- Wide module spacing reduces module count and installation time
- Great in areas with indirect water exposure or salt spray
Specs
| Beam Angle | 160° Low Dome, Batwing Optic | |
| Certifications | UL & cUL Recognized (SAM Manual), CE, RoHs | |
| Dimensions | 0.7”W x 3.55”L x 0.35”H | |
| Efficacy | RED | 33 LM/W |
| GREEN | 71 LM/W | |
| BLUE | 19 LM/W | |
| ALL | 38 LM/W | |
| Fastening | Peel & stick / Mechanical screw hole | |
| Input | 12VDC | |
| Intensity | RED | 7 LM/mod (12.6 LM/ft) |
| GREEN | 15 LM/mod (27 LM/ft) | |
| BLUE | 4 LM/mod (7.2 LM/ft) | |
| ALL | 25 LM/mod (45 LM/ft) | |
| Max Mods (Series) | 45 mods (25 ft.) | |
| Operating Temp | -40° to +140°F (-40° to +60°C) | |
| Packaging | 90 mods (50 ft.) per bag or 1,080 mods (600 ft.) per case | |
| Power | COLORS | 0.21W/mod (0.378W/ft) |
| ALL | 0.65W/mod (1.17W/ft) | |
| Power Supply | P-LED 12VDC | |
| Protection Grade | IP67 | |
| Run Footage | 90 mods (50 ft.)/60W PS | |
| Spacing | 1.8 mods/ft (fully stretched) | |
| Warranty | 10-Year Product / 5-Year Limited Labor |
Product Options
| Product | Wavelength | Part Number |
| All | N/A | PL-OP2-SC3-P-RGB (M-SFCX3-3C) |
| Red | 625nm | PL-OP2-SC3-P-RGB (M-SFCX3-3C) |
| Green | 525nm | PL-OP2-SC3-P-RGB (M-SFCX3-3C) |
| Blue | 460nm | PL-OP2-SC3-P-RGB (M-SFCX3-3C) |
Wiring
| Gray | Positive |
| Red | Negative |
| Green | Negative |
| Blue | Negative |
Coverage
| Depth* | Max. Stroke | Row Spacing |
| Single Row | Multi-Rows O.C. | |
| 4″ | 9″ | 6″ |
| 5″ | 12″ | 10″ |
| 6″ | 14″ | 12″ |
| 7″ | 14″ | 12″ |
