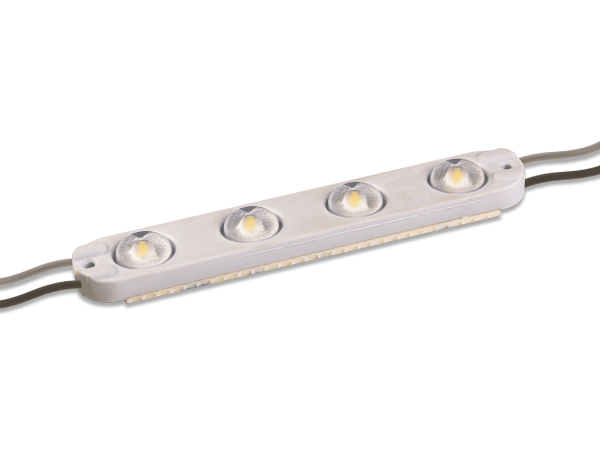

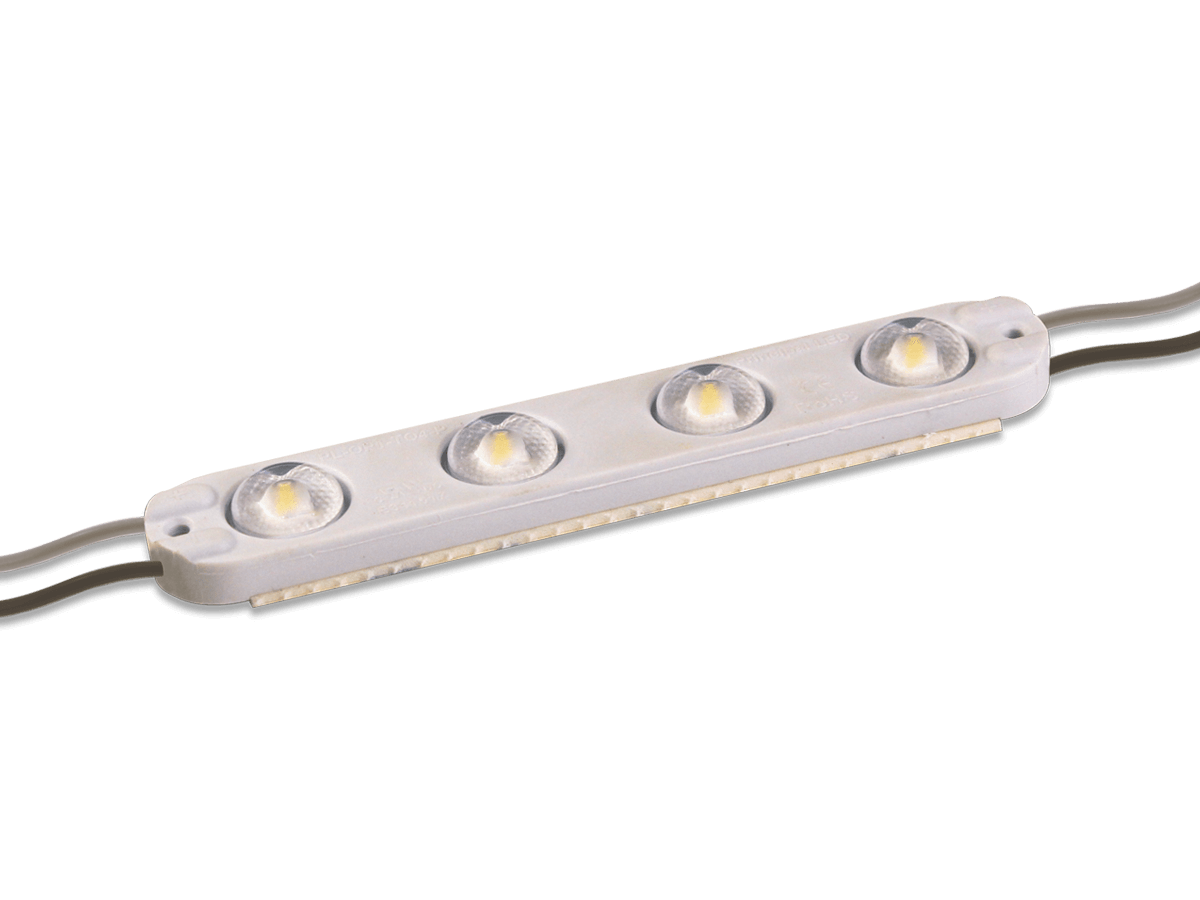

Pinnacle™ HE 24V
NEW and improved Pinnacle module is now 24V with higher efficiency for longer run footage.
Pairs well with Versa Stik
Specs
| Beam Angle | 170˚ Diamondback Optic Lens |
| Certifications | UL & cUL Recognized (SAM Manual), CE, RoHs, CSA |
| Dimensions | 4.05”L x 0.69”W x 0.3”H |
| Fastening | Peel & stick / Mechanical screw hole |
| Input | 24VDC |
| Max Mods (Series) | 36 Mods (37.73 ft.) |
| Operating Temp | -40° to +60°F |
| Packaging | 72 Mods (65.45 ft.) per bag or 1008 Mods (763.64 ft.) per case |
| Power Supply | P-LED 24VDC |
| Protection Grade | IP67 |
| Module on Center Spacing | 10.91″ |
| Warranty | 10-Year Product / 5-Year Limited Labor |
Product Options
| CCT | Efficacy | Intensity | Power | Part Number |
| 5000K | 172 LM/W | 227 LM/mod (250 LM/ft.) | 1.32 W/Mod (1.45 W/ft.) | PL-OP1-TO4-P (M-SFTO4-50-24) |
| 6500K | 172 LM/W | 227 LM/mod (250 LM/ft.) | 1.32 W/Mod (1.45 W/ft.) | PL-OP1-TO4-P (M-SFTO4-65-24) |
Coverage
| Depth | Max. Stroke | Row Spacing |
| Single Row | Multi-Rows O.C. | |
| 5″-12″ | 18″ | 12″ |
