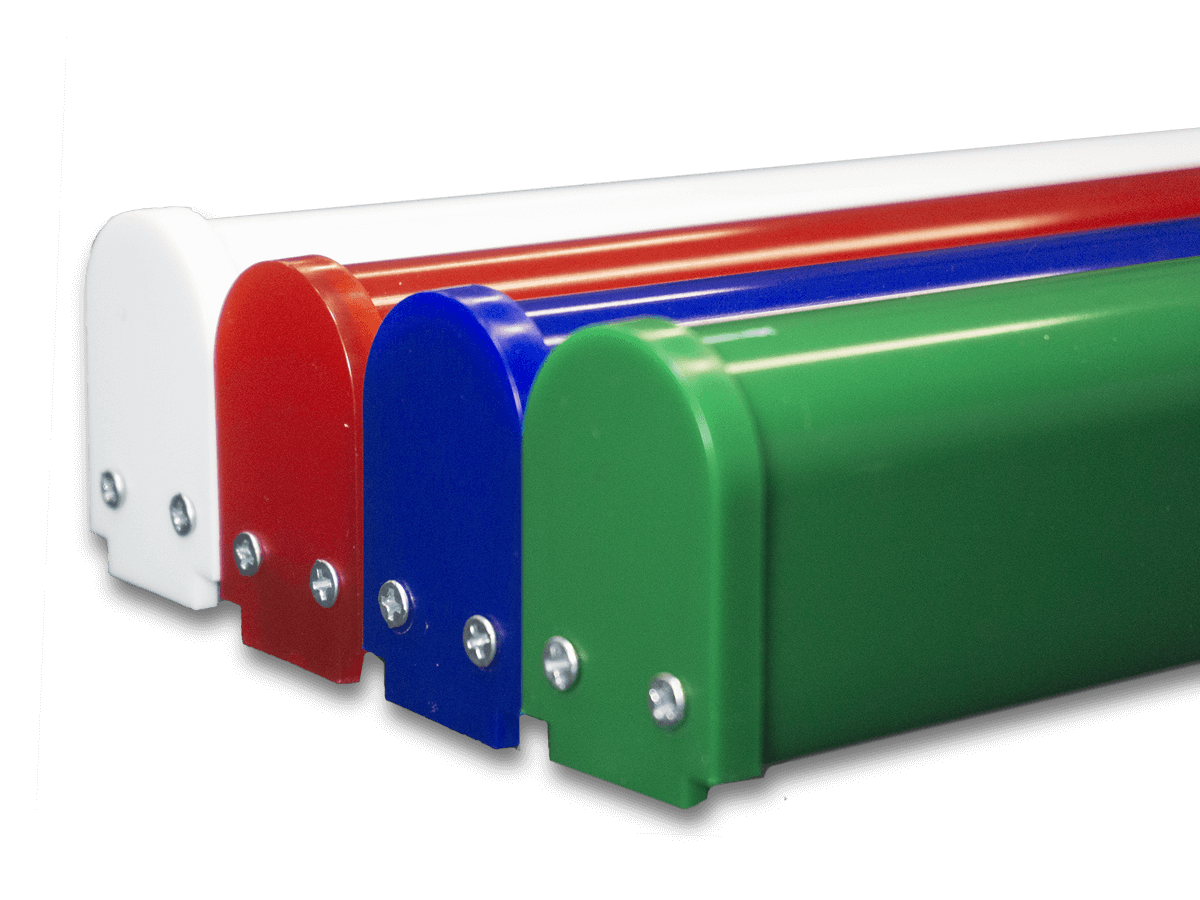

Street Wrap™ Gen 2
Your go-to field-cuttable rigid border solution for tubing—now in 24V.
Street Wrap™ Gen 2, now powered by 24 Volts, is your go-to rigid border solution for tubing that’s field-cuttable, so there are no pricey customization or set-up fees. Enjoy the benefits of a light tape-based design, allowing you to add that extra punch to your business’s facade quickly and easily.
- IP67 LED 24V Light Tape
- Indoor/outdoor application
- Field cuttable
- Evenly illuminates
- Bring an extra punch of color to your business
- Rigid, extruded aluminum
Round out your Street Wrap Gen 2 installation with related accessories:
- End cap
- Middle connector
- Inside corner cap
- Outside corner cap
- Mounting brackets
NOTE: This product is rigid and will only work on straight and flush surfaces. It will not be able to be used on a curved surface of any kind. To ensure the necessary quantities are ordered, do not divide the total perimeter (in feet) by 8; this will likely result in a shortage during installation. For assistance on how to correctly calculate the quantities needed, please reach out to our customer service or layout department at (325) 227‑4577 or submit your question via email to info@pindustries.com.
Specs
| Beam Angle | 120˚ High Dome Lambertian |
| Certifications | UL & cUL Recognized (SAM Manual), CE, RoHs |
| Dimensions | 1.25”W x 96”L x 2.1875”H |
| Fastening | Mounting Brackets (3 ea.) |
| Input | 24VDC |
| Max Mods (Series) | 2 units max per series |
| Operating Temp | -40° to +60˚C |
| Power | 22W per unit |
| Power Supply | P-LED 24VDC |
| Protection Grade | IP67 |
| Run Footage | 4, 96” units/96W/24V PS |
| Spacing | 3.38 mods/ft (fully stretched) |
| Warranty | 5-Year Product / 5-Year Limited Labor |
Product Options
| Color* | Wavelength/CCT | Length | Efficacy | Intensity (LM/unit) | Light Tape Length | W/Ft. | W/Unit | Max Power Load 96W/24V | Part Number |
| Pure White | 6300K | 96″ | 100 | 2,192 | 98″ | 2.75 | 22 | 4 units | B-SR2-S00-09663 |
| Red | 625nm | 96″ | 31 | 680 | 98″ | 2.75 | 22 | 4 units | B-SR2-S00-096RD |
| Blue | 460nm | 96″ | 21 | 456 | 98″ | 2.75 | 22 | 4 units | B-SR2-S00-096BL |
| Green | 525nm | 96″ | 72 | 1,584 | 98″ | 2.75 | 22 | 4 units | B-SR2-S00-096GR |
| **RGB | Red 625 nm Blue 460 nm Green 525 nm |
96″ | 8 5 20 |
176 104 432 |
98″ | 2.75 | 22 | 4 units | B-SR2-S00-0963C |
*Customized, non-stock colors available upon request. Lead times may vary.
**Coming soon!
Accessories
Accessories
| Part Number | Description | Packaging |

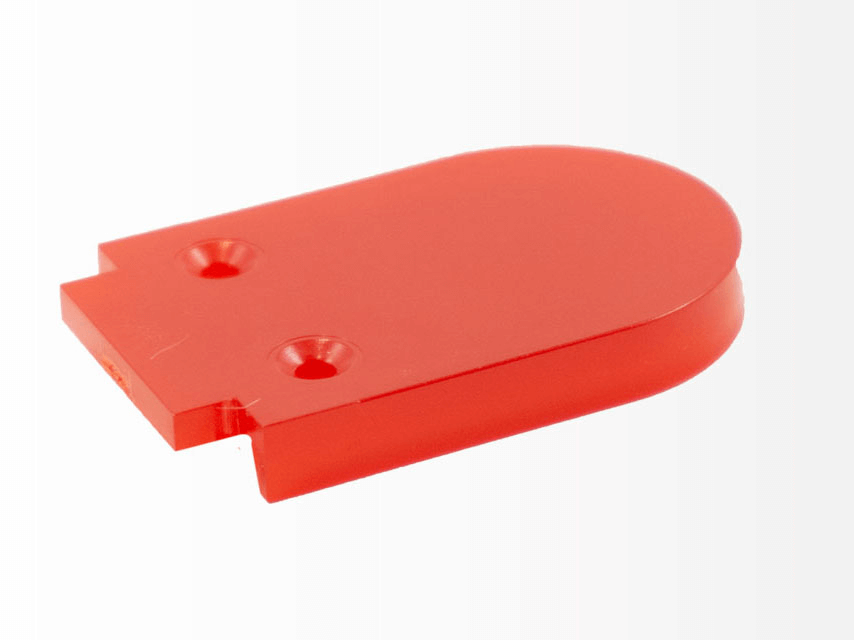

| A-SR2C-ECYY | End Cap | 1 ea. |

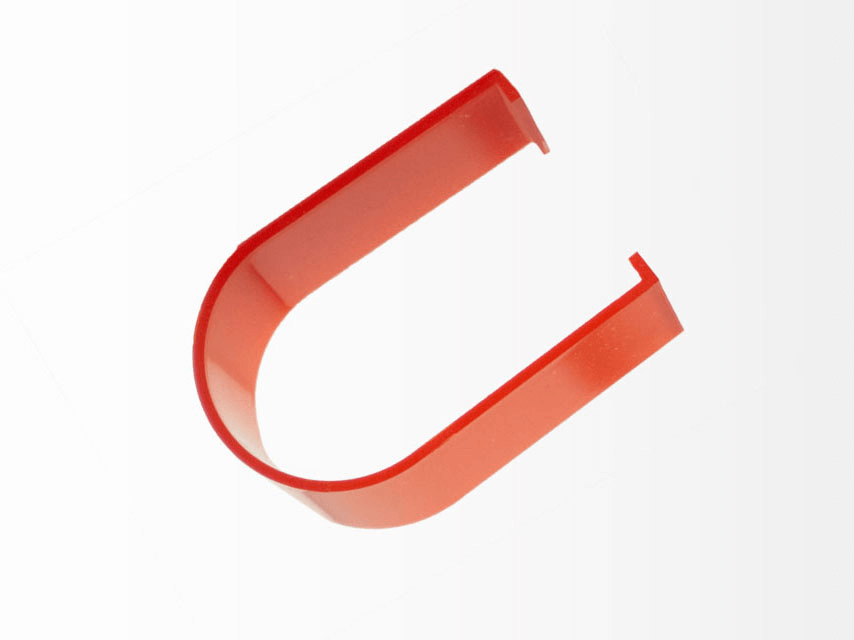

| A-SR2C-MXYY | Middle Connector | 1 ea. |

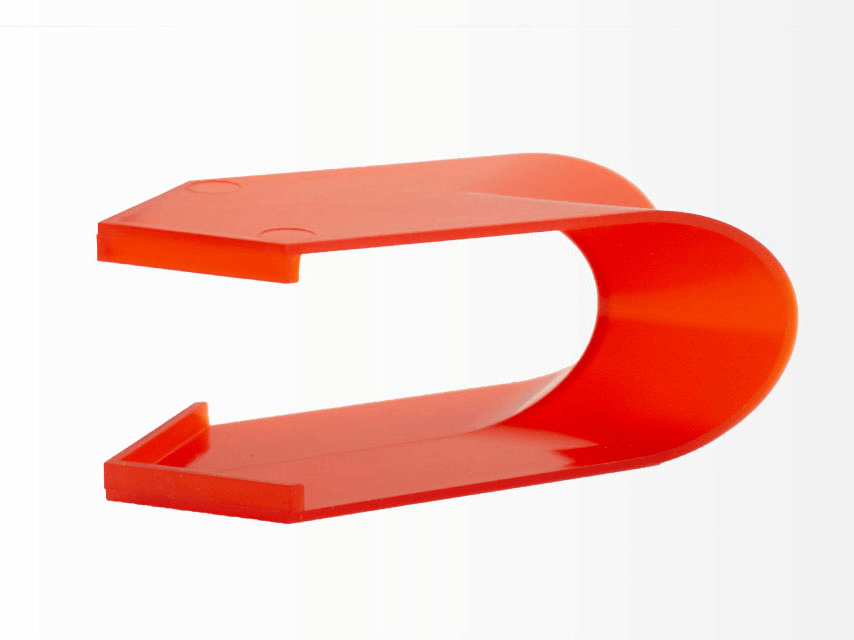

| A-SR2C-CIYY | Inside Corner Cap | 1 ea. |

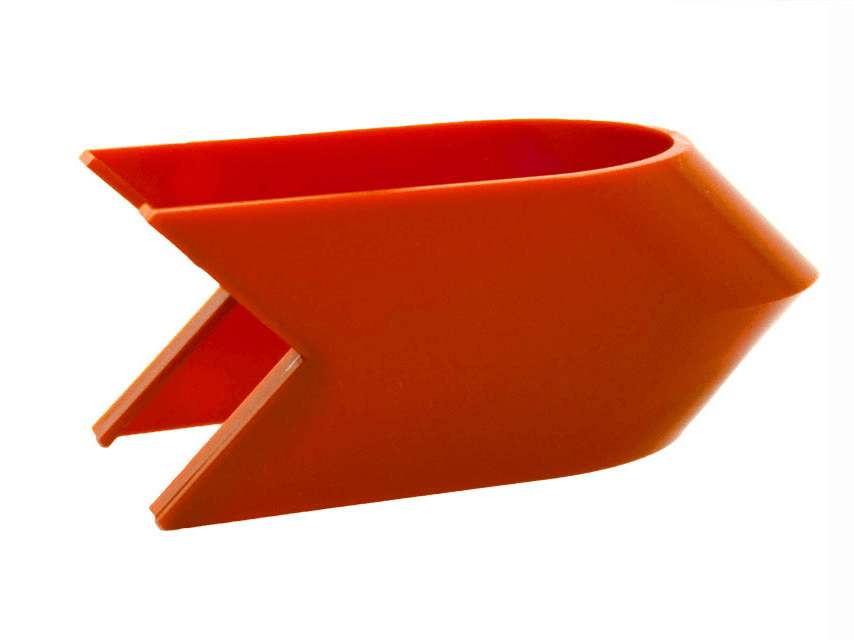

| A-SR2C-COYY | Outside Corner Cap | 1 ea. |

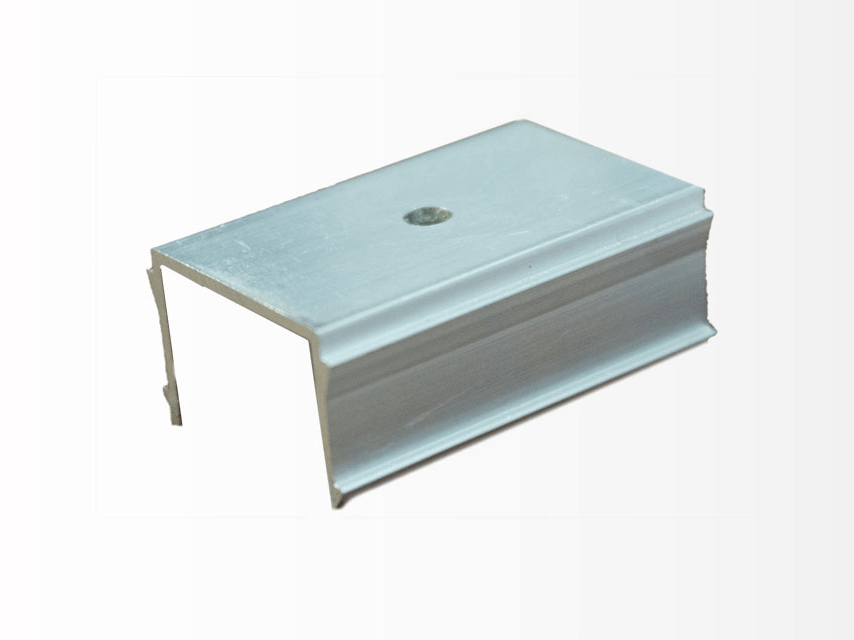

| A-SR2-BKTS | Mounting Bracket | 1 ea. |
YY = Blue (BL), Green (GR), Red (RD), White (WH)
